A two-link   tracked amphibious snow and swamp-going vehicle with a hydraulic lift is   designed for maintenance,   repair and installation of power transmission line towers in off-road   terrain, virgin snow and all categories of swamps.

This vehicle is equipped with a remote-controlled installation of a crane-boom type with articulated-boom equipment.

Specifications:

– service area height is 24 m;

– maximum carrying capacity of the cradle is not less than 200 kg;

– column rotation angle is 360 degrees;

– electrical insulation - 1000 V;

Specification summary

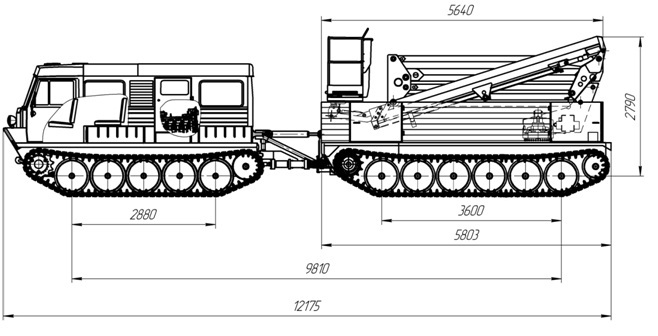

Main overall dimensions
