The vehicle is designed to ensure the comfort work for repair teams and can be equipped with air conditioning, electric warmers or heaters as well as a fire fighting system and electrode drying ovens. A working compartment is equipped with a work table with a vice and drawers, electrical sockets and an automatic protection board.
The vehicle is equipped with the following facilities:
– diesel generator set, with a power up to 48 kW;
– inverter welding unit DC250.33 (or - analogue);
– oxy-propane cutting set;
– lighting kit;
– electric drill, 1 kW, 0.5 kW;
– electric grinder, 0.5 kW;
– grinding machine, 2 kW, 230 mm wheel;
– fitter’s tool kit;
– fire-fighting equipment;
– four fire extinguishers OP-50.
Average specific ground pressure, kgf/cm2 |
0,2 |
Capacity, kg |
4000 |
Curb weight, kg |
15440 |
Engine |
KAMAZ 740.51 320 HP. |
Transmission |
9-speed, manual
manufactured by ZF or automatic one Allison |
Number of seats in the first-link cabin |
6 |
Number of berths |
2 |
Overall dimensions, mm: |
|
length |
11570 |
track width with extensions |
2940 |
height |
2700 |
Internal dimensions of the working compartment, mm |
|
length |
4740 |
Width |
2020 |
height |
1930 |
Overall dimensions, mm: |
2500 |
Steering control |
Steer |

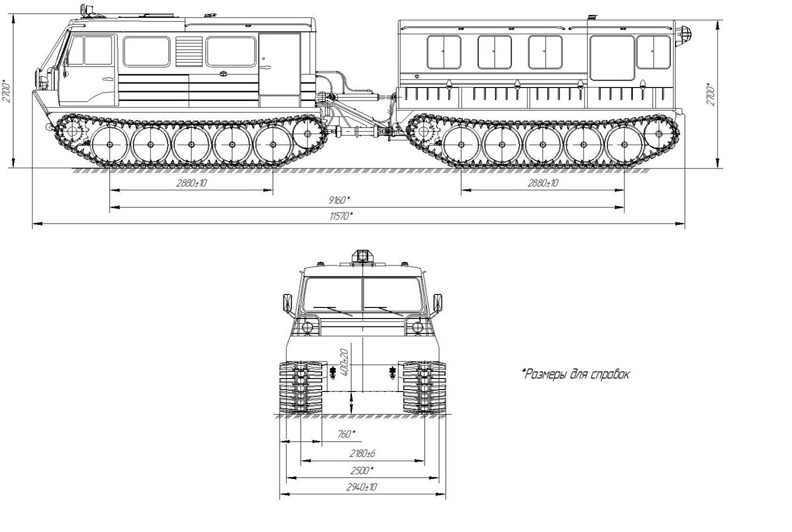

Main overall dimensions
